Dashboard — the glass cockpit

dashboard_server.py is a FastAPI app that serves a vanilla-JS PWA from docs/ (yes, that folder — it predates this site), proxies the rover's cameras and telemetry, hosts the agent behind a WebSocket, and owns the passkey gate. It is the only service the Cloudflare tunnel exposes.

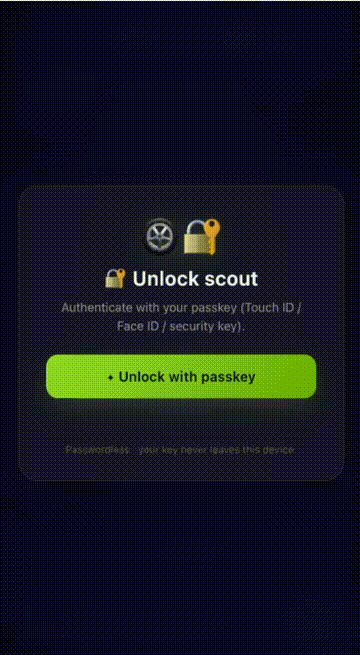

🕹️ unlock → joystick → "do a 360"

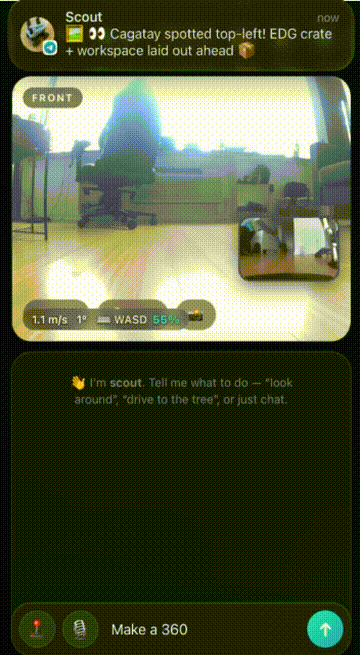

🤖 Ask → tool calls stream live

The gate

Everything under /api/* and both WebSockets require a passkey session (a short-lived JWT the browser gets after a WebAuthn login). A global middleware enforces it; the public allow-list is exactly:

• GET /api/health — for uptime checks,
• /auth/* — the WebAuthn ceremony itself,
• the page shells /, /replay, /field-card, /trust, /ca and the static /css, /js.

Anonymous /api/* → 401; anonymous WebSocket → close 4401. Multi-admin: enrol more passkeys from the ⚙️ drawer, rename or delete them — the last one cannot be removed. Full story in Auth; the route-by-route table is generated from the code in the Dashboard API.

What's on screen

region	what it does	wired to
cameras	big front view, small rear PiP; tap to swap; 💡 lamp; 📷 snapshot	GET /api/frame/{front\|rear} polled (~700 ms), POST /api/lamp, GET /api/screenshot
HUD	battery, GPS fix, signal, heading, speed, lamp	GET /api/telemetry (the SDK's /data)
joystick / WASD	continuous /control frames while held, e-stop on release, blur or Space	POST /api/control {linear, angular, duration}
Ask	chat with the agent; tokens, tool receipts, reasoning stream back	WS /ws/chat
🎙 browser voice	your phone's mic ↔ bidi model ↔ phone speaker (PCM16 frames)	WS /ws/voice
🎭 persona pills	rover-voice · thinker · telegram · rec — ON/OFF live, plus 🕹 thinker-drive in the sheet	GET/POST /api/personas[/name]
⚙️ drawer	system prompt, model id, voice provider/name, masked .env keys, passkeys — saves rebuild the agent	GET/POST /api/config, /auth/credentials*
🎞 replay (/replay)	dataset browser: episodes, per-episode video windows, reasoning trace, memory search	/api/replay/*

The agent behind the socket

One agent instance per dashboard process, rebuilt when config changes, one turn at a time (_agent_busy lock). Each turn the server attaches the latest front/rear frames to the prompt (build_turn_input), streams the Strands callback events as token / tool / reasoning / done messages, and — if the turn issued at least one action — the auto-recorder saves it as a dataset episode.

POST /api/chat is the synchronous twin of the socket, built for machines: it is what tiny.technology's endpoint proxy calls when a sibling robot asks Scout something. That path builds the agent with fleet=True, i.e. no fleet tools, which is how the one-hop depth cap is enforced. → Fleet

Running it outside docker

make dashboard        # http://localhost:8080 (auth still on; passkeys need HTTPS → use dashboard-tls)
make dashboard-tls    # https on :8443 with a self-signed cert so WebAuthn works on the LAN
make field-card       # printable QR card with the URL + CA fingerprint for a demo venue

The page's WebSocket target is a parameter (?ws=… → localStorage → page origin), so the static shell can be hosted anywhere and pointed at any rover.

Keyboard cheat-sheet

keys	action
W S / A D	forward/back · turn left/right (hold several for arcs)
Space	stop
[ ] · 1–5	speed down/up · presets
Shift	turbo while held
Enter in Ask	send
