Dashboard·

You left, the agent right, the conversation below.

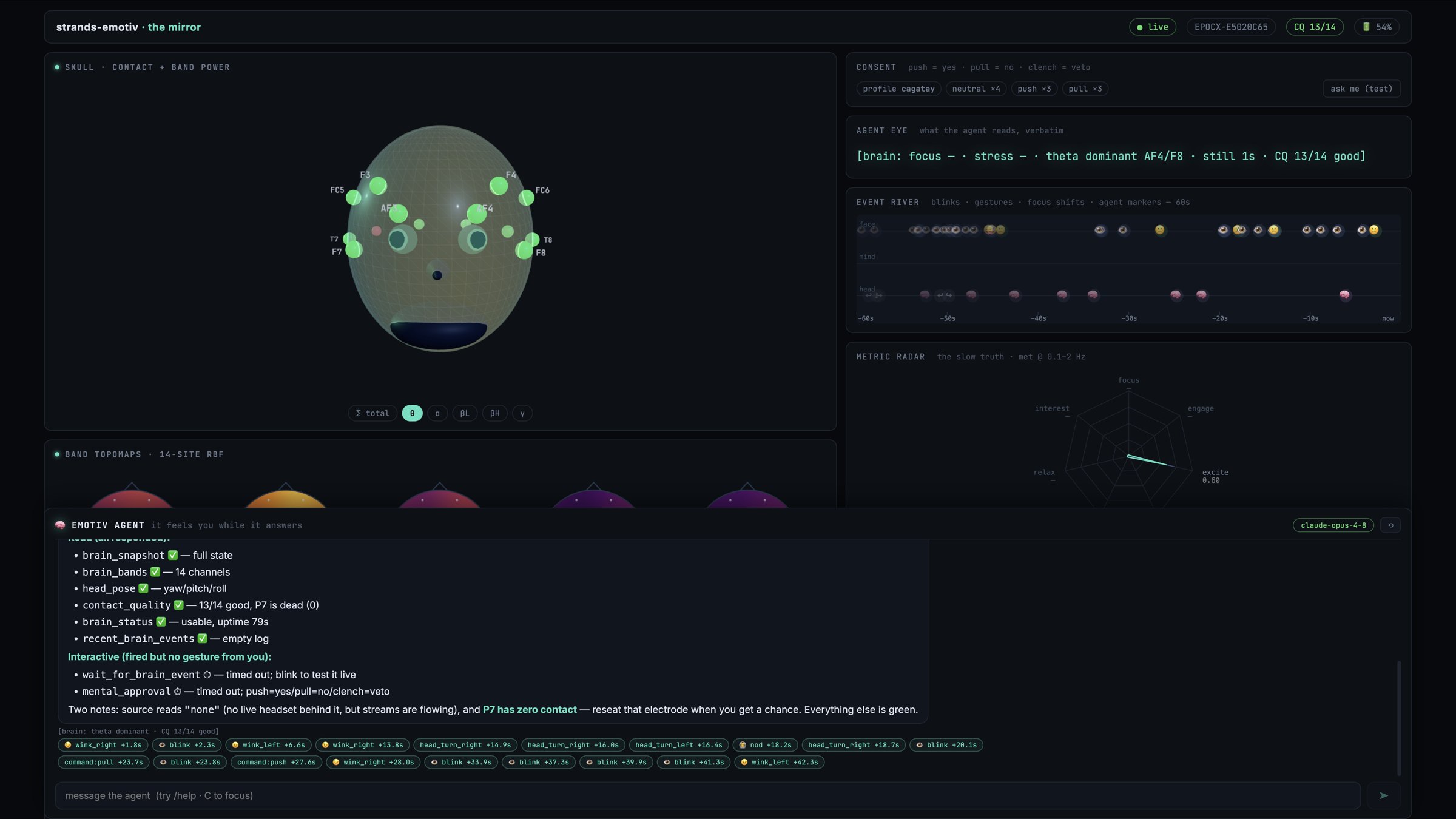

dashboard: you left, agent right, chat below

Left: you·

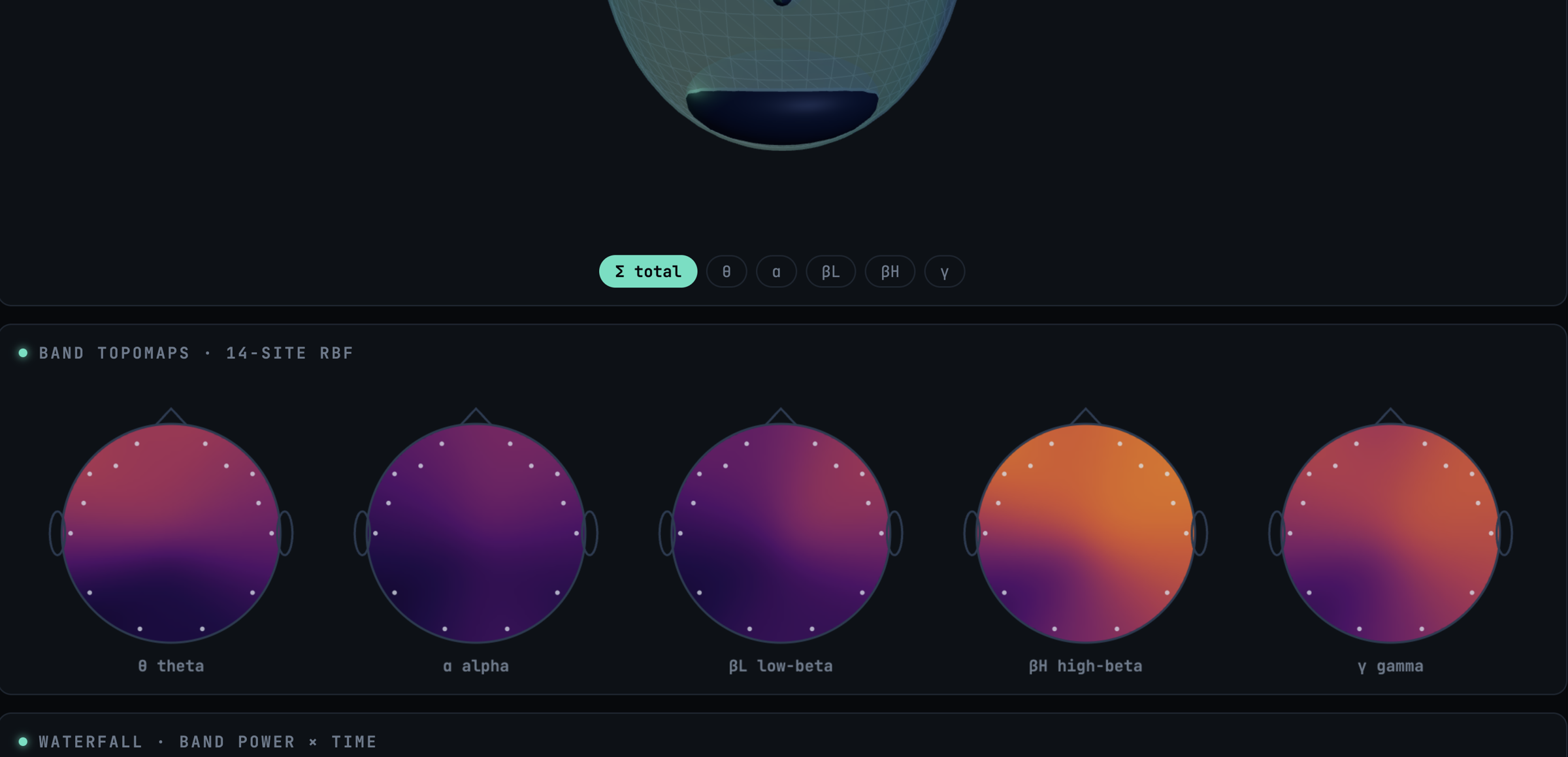

the skull, 14 electrode orbs at 10-20 positions

  • Skull: turns with your head (32 Hz). 14 orbs: color = CQ, size = band power. Eyes flash on blink, jaw on clench.
  • Topomaps: θ α βL βH γ over the scalp. Close your eyes: alpha blooms.
  • Waterfall: 10 minutes of band power per channel.
  • Head trail: where you looked.

band topomaps and the 10-minute waterfall

Right: the agent·

agent eye: the exact line it reads

  • Agent eye: the exact line it reads. CQ < 10/14 → "I can't see your brain right now."
  • Event river: blinks, clenches, turns flow left→right; the agent's markers land in the same river.
  • Metric radar: 7 mood axes, fading ghosts (exc/lex 2 Hz, the rest ~10 s, each holds its last value). Missing stays missing, never 0.00.
  • Sonify: off by default. Alpha → drone, beta → tempo, blink → tick.
  • Consent: push = yes · pull = no · clench = veto.

Bottom: chat·

Streams markdown. Under each message: the line the agent saw. Tool calls and mid-turn blinks become chips.

cd dashboard/frontend && npm i && npm run dev    # proxies /ws → :8765
